Weber Down Draft Crankcase Venting

Andy Martin — Posted on The Triumph Experience
Saturday March 21, 2015 1:16 PM

I drilled and tapped a port in the manifold,i built a device(Gizmo) copied from Paul Tegler's site,i drilled and tapped a port in the fuel pump blanking plate,ran a hose from the blanking plate to the air filter.
I got an off the shelf PCV valve from Auto Zone.
The Gizmo attaches to the aluminium valve cover and the PCV valve is between Gizmo and manifold port.

This set up was trial number one,and had no oil coming out of anywhere other than my 2 small drips underneath which have always been there and didn't get worse.

I am now trying it with no Gizmo,hose to catch can and hose with PCV valve from catch can to manifold and will report back.
I did away with the catch can and went back to the first set up

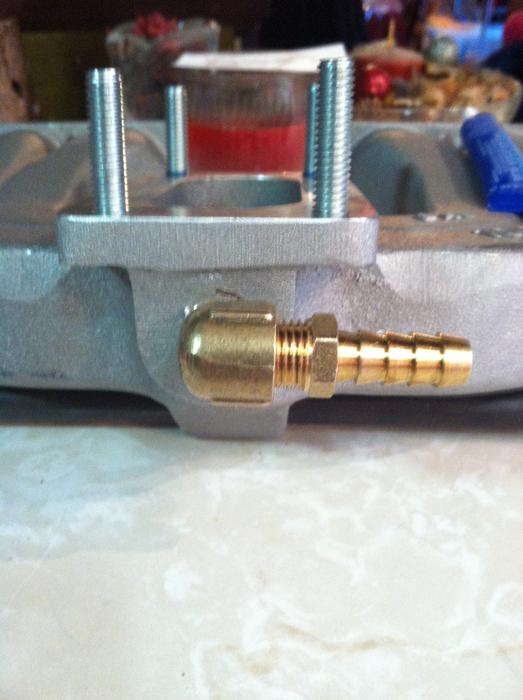

Manifold port

Gizmo under construction

PCV valve

Blanking plate

Gizmo attached

Blanking plate connection

Overview

catch can

Pcv valve between can and manifold

Member Comments on Journal Entry: Weber Down Draft Crankcase Venting ↵

Rated 8 out of 10 based on 1 ratings

2016-03-28 06:21:01 # 33351

Comment by John McGuire

Looks great. Since I still use a mechanical fuel pump, do you suppose a simple hose from the intake manifold fitting to the valve cover will suffice? Also, did you use pipe-threads into the intake, or can I use a standard tap & die set?

2016-03-30 20:15:09 # 33448

Comment by andy martin

you will need a PCV valve in the hose as near to the manifold as you can get itI used standard tap

2016-07-29 08:46:53 # 36152

Comment by s y

Andy -- I'm not quite sure what setup you ended up with."I am now trying it with no Gizmo,hose to catch can and hose with PCV valve from catch can to manifold and will report back.I did away with the catch can and went back to the first set up"Which was the "first set up"?Was it " ... a port in the manifold,i built a device(Gizmo) ,... a port in the fuel pump blanking plate,... a hose from the blanking plate to the air filter., ...a PCV valve from Auto Zone.; and the Gizmo attaches to the aluminium valve cover and the PCV valve is between Gizmo and manifold port."??How is it running now?Thanks!

2016-09-08 20:25:32 # 37168

Comment by s y

Wow. Yer kidding, right?That elaborate a setup for something that might or might not be the problem?Desperately need your latest feedback! .... before embarking on this remodeling project.Thanks.

2016-10-24 10:18:04 # 38008

Comment by Richard Costa

Rating: 8/10

It's actually not elaborate at all, assuming you have an electric fuel pump and don't use the mechanical outlet. The Gizmo looks pointless to me though. The other thing I'm not 100% sold on is this actual PCV valve since they usually have to be sized to an application. I do like the idea of having a valve there though and I'll try this one. Well done.

2016-10-26 22:10:02 # 38091

Comment by Todd J

question: why did you not run the crankcase hose through an oil catch-can before routing it up to the DGV's air filter's intake elbow?alternatively, why not run both the crankcase venting hose and the hose from the valve cover through an oil catch-cans and then into the DGV manifoldthanks for your thoughts!
